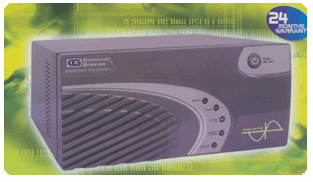

Crompton Greaves Inverters
- Highly efficient MOSFET technology
- Over Temperature protection
- Reverse phase protection
- Silent operation
- Battery Fuse Blown display
- Selector switch for Normal / UPS mode
- Normal / High Charging Option
- High surge load capacity
- Wide input voltage range
- Battery High Protection
Ratings
| Parameters | 600VA | 800VA | 1400VA |
| DC Voltage | 12V | 12V | 24V |
| Battery rating (3hrs) backup | 12V/130AH x 1 | 12V/160AH x 1 | 12V/160AH x 2 |
| Battery rating (2hrs) backup | 12V/100AH x 1 | 12V/130AH x 1 | 12V/100AH x 2 |
Load Chart
| Rating | 600VA | 800VA | 1400VA | ||||||
| Chart A | Chart B | Chart C | Chart A | Chart B | Chart C | Chart A | Chart B | Chart C | |
| Fan | 2 | 3 | 2 | 3 | 4 | 3 | 4 | 5 | 6 |
| Television | 1 | 1 | 2 | 1 | 1 | ||||
| Tubelight | 3 | 4 | 3 | 4 | 6 | 4 | 6 | 8 | 6 |
| PC | 1 | 1 | 1 | 1 | 1 | ||||
DSP Sine Wave Static UPS 2.5KVA,3.5KVA and 5KVA
SALIENT FEATURES
- State of the art MOSFET based PWM Technology to increase Crest Factors.
- Auto Sense Intelligent Control Smart Charger.
- Electronic change-over,hence much better reliability.
- Quiet operation of AC motors as well as other inductive loads unlike the noise that emanates from modified Sine Wave Systems.
- Very low Total Harmonic Distortion <3%.
- Fast Changeover ensuring Compatibility with Computers.
- TDR(Time Delay Relay),especially for AC Compressor based applications.
- Main Mode Short Circuit Protection
- Surge load Capacity upto 300%.
- Less Operating Cost as compared to that with online UPS as well as DG Sets.
- Bypass Switch incase of Systems Failure.
- Co,patibility with D.G.Sets.
APPLICATIONS
- Suitable for providing alternate power source in corporate offices,BPOs,KPOs etc.
- Supports all office equipements including computer,scanner,printers,fax maxchines etc.
- Provision for emergency & portable power systems.
- Supports air conditioner as well as all compressor based appliances.
- Aids petrol/diesel filing machines.
- As an all rounder it also helps tread mills and other health equipments to run.
- Motor based appliances like water pumps are also supported.
Crompton Greaves Limited
Technical Specifications
| Description | 2.5KVA | 3.5KVA | 5KVA |
| Back-up Mode | |||
| Output Wave Form | Pure Sine Wave | ||
| Nominal Battery Voltage | 48V DC | 48V DC | 96V DC |
| Output Power Factor | 0.8 | ||
| No Load O/P Voltage | 220V±5V AC | ||
| O/P Frequency | 50Hz±1Hz | ||
| Maximum No load Batt. Current | 1.1A±0.2 A | ||
| Full Load O/P Current | 8.7A±0.5 A | 11.5A±0.5 A | 17A±0.5 A |
| Total Harmonic Distortion | <3% | ||
| Low Battery Indication | 10.5V+/-0.2V DC Per Battery(12V DC Each) | ||
| Low Batt. Cut off | 10.3V+/-0.2V DC Per Battery(12V DC Each) | ||
| Mains Mode | |||
| Max. Charging Current | 10A±1A | ||
| Full Load O/P Current at Mains Mode | 15A±1A | 17.6A±1A | 25A±1A |
| Boost Charging Voltage | 10.5V+/-0.2V DC Per Battery(12V DC Each) | ||
| Float Charging Voltage | 13.7V+/-0.2V DC Per Battery(12V DC Each) | ||
| Noramal Mode | |||
| Input Voltage Range | 100V to 280V AC±10V AC | 125V to 280V AC±10V AC | |
| Change Over Time(mains to inverter) | <40ms | ||
| Change Over Time(mains to inverter) | <25ms | ||
| UPS Mode | |||
| Input Voltage Range | 180V to 260V AC±5V AC | ||
| Change Over Time(mains to inverter) | <10ms | ||
| Change Over Time(inv. to mains) | <10ms | ||
| Protections | |||
| Protections | Output Not Ok,Battery Voltage Low(4 Auto Retries),Over Load(6 Auto Retries) | ||
| Battery Over Charge,Over Temperature,Short Circuit,Mains MCB Tripped | |||
| Displays | |||
| Displays | Welcome Message,Cpacity,Output Voltage,Output Frequency,Load Percentage | ||
| Input Voltage and Frequency,Load Percentage,Load Percentage,Battery Charging,Battery Voltage,and All Protections.. | |||
| Environmental Parameters | |||
| Operating Temperature | 0-45Deg. | ||
| Acoustic Noise at 1 Mtr. | <45 dB. | ||
| Relative Humidity | Max 95% non-Condensing | ||
| Thermal Management | Integrated Cooling(Fan & Heat Sink) | ||
| Weight and Dimensions | |||
| With Packaging LXWXH in mm | 470x440x610 | 470x440x610 | 500x495x660 |
| Without Packaging LXWXH in mm | 310x290x450 | 310x290x450 | 350x300x540 |
| Net Weight | 29Kg | 36Kg | 54Kg |
| Gross Weight | 36Kg | 39Kg | 58Kg |
Load Chart
| Load | 2.5KVA | 3.5KVA | 5KVA | ||||||
| Chart1 | Chart2 | Chart3 | Chart1 | Chart2 | Chart3 | Chart1 | Chart2 | Chart3 | |
| Fans | 4 | 12 | 8 | 6 | 18 | 10 | 10 | 8 | 3 |
| Tube Light | 4 | 12 | 8 | 6 | 18 | 10 | 10 | 8 | 3 |
| Computer with CRT Screen |
4 | 2 | 6 | 3 | 8 | 3 | |||
| TV | 3 | 2 | 3 | 3 | |||||
| Air Conditioner | 1 | 1 | |||||||
